Introduction

The Universal Serial Bus On-The-Go (USB OTG) is originally supported by Linux USB subsystem with Realtek’s dedicatedly designed USB PHY driver and a few changes at DWC2 USB controller driver.

Architecture

The USB software architecture is illustrated in the following figure.

../../_images/usb_software_architecture.svg

USB software architecture

Implementation

The original USB is supported by Linux USB subsystem.

File

Description

<linux>/drivers/usb/dwc2/

DWC2 host & device controller driver, with changes by Realtek

<linux>/drivers/usb/core/

HCD core

<linux>/drivers/usb/gadget/

Gadget core

<linux>/drivers/usb/gadget/function/

Device classes, such as ADB, CDC ACM, HID, MSC, etc.

<linux>/drivers/usb/class/cdc-acm.*

CDC ACM host class

<linux>/drivers/usb/storage/*

MSC host class

For more details of USB subsystem, refer to https://www.kernel.org/doc/html/v5.4/usb/index.html.

Realtek USB PHY driver is implemented as following files:

File

Description

<linux>/drivers/rtkdrivers/usb_phy/Kconfig

USB PHY driver Kconfig

<linux>/drivers/rtkdrivers/usb_phy/Makefile

USB PHY driver Makefile

<linux>/drivers/rtkdrivers/usb_phy/phy-rtk-usb.c

USB PHY functions

<linux>/drivers/rtkdrivers/usb_phy/phy-rtk-usb.h

USB PHY API declaration

Configuration

DTS Configuration

USB PHY DTS Configuration

USB PHY DTS node is defined in <dts>/rtl8730e-ocp.dtsi:

usb_phy: usb-phy@41000000 {
   compatible = "realtek,otg-phy";
   reg = <0x400B0000 0x20>,
   <0x41000060 4>,
   <0x42000100 0x10>,
   <0x4200825C 4>;
   #phy-cells = <0>;
   clocks = <&rcc RTK_CKE_USB>;
   rtk,cal-data = <0x00 0xE0 0x9D>,
      <0x00 0xE1 0x19>,
      <0x00 0xE2 0xDB>,
      <0x00 0xE4 0x68>,
      <0x01 0xE5 0x0A>,
      <0x01 0xE6 0xD8>,
      <0x02 0xE7 0x52>,
      <0x01 0xE0 0x04>,
      <0x01 0xE0 0x00>,
      <0x01 0xE0 0x04>;
   rtk,usb-phandle = <&usb>;
   rtk,usb-force-role-en = <1>;
   status = "okay";
};

The DTS configurations of USB PHY are listed below:

Property

Description

Configurable?

compatible

ID to match the Realtek USB PHY driver with the USB PHY device

No

reg

USB PHY register resource

No

#phy-cells

Indicates how many cells are needed to specifically describe a USB PHY, fixed at 0 for only one USB phy

No

clocks

The clock source of USB PHY

No

rtk,cal-data

The calibration data of USB PHY

No

rtk,usb-phandle

The USB Pointer Handle of USB PHY

No

rtk,usb-force-role-en

Enables forced switching between USB Host and Device modes.

1/0

status

USB PHY status

disabled/okay

USB PHY node is enabled by default. To disable it, overwrite the node status to disabled by node reference in higher level DTS file, such as chip specific DTS file or board specific DTS file:

&usb_phy{
   status = "disabled";
};

USB DTS Configuration

USB PHY DTS node is defined in <dts>/rtl8730e-ocp.dtsi:

usb: usb@40080000 {
   compatible = "realtek,dwc-otg";
   reg = <0x40080000 0x20000>;
   interrupts = <GIC_SPI 39 IRQ_TYPE_LEVEL_HIGH>;
   g-rx-fifo-size = <512>;
   g-np-tx-fifo-size = <256>;
   g-tx-fifo-size = <128 120>;
   status = "okay";
   endpoints {
      ep1in {
         ep_name = "ep1in";
         ep_type = <0x0E>; // USB_EP_CAPS_TYPE_ALL
      };
      ep2out {
         ep_name = "ep2out";
         ep_type = <0x0E>; // USB_EP_CAPS_TYPE_ALL
      };
      ep3in {
         ep_name = "ep3in";
         ep_type = <0x0E>; // USB_EP_CAPS_TYPE_ALL
      };
      ep4out {
         ep_name = "ep4out";
         ep_type = <0x0E>; // USB_EP_CAPS_TYPE_ALL
      };
      ep5in {
         ep_name = "ep5in";
         ep_type = <0x0E>; // USB_EP_CAPS_TYPE_ALL
      };
      ep5out {
         ep_name = "ep5out";
         ep_type = <0x0E>; // USB_EP_CAPS_TYPE_ALL
      };
   };
};

The DTS configurations of USB are listed below:

Property

Description

Configurable?

compatible

ID to match the DWC2 controller driver with the USB OTG device

No

reg

USB register resource

No

interrupts

The GIC interrupt for USB

No

g-rx-fifo-size

The periodic Rx FIFO size for the USB device (unit: DWORDS).

16~512

g-np-tx-fifo-size

The non-periodic Tx FIFO size for the USB device (unit: DWORDS).

16~256

g-tx-fifo-size

An array of TX FIFO sizes in dedicated FIFO mode. Each value corresponds to one EP starting (unit: DWORDS). Realtek USB works in shared FIFO mode, therefore this configuration will be ignored.

16~256

status

USB device status

disabled/okay

endpoints

Allows USB Endpoint address configuration to meet specific client requirements.

Yes

Note

  • The total Data FIFO depth is 1016, that means the result of g-rx-fifo-size + g-np-tx-fifo-size + g-tx-fifo-size should not be larger than 1016.

  • DO NOT change the default configurations unless indeed necessary.

The USB node is enabled by default. To disable it, overwrite the node status to disabled by node reference in higher level DTS file, such as chip specific DTS file or board specific DTS file:

&usb{
   status = "disabled";
};

Build Configuration

The USB functions can be configured as built-in functions in kernel image or independent kernel modules.

Build-in Configuration

To build USB functions into kernel image:

  1. Select Y for Device Drivers > Drivers for Realtek > USB PHY driver.

    ../../_images/select_y_for_usb_phy_driver.png

  2. Select Y for Device Drivers > USB support.

    ../../_images/select_y_for_usb_support.png

  3. Select required USB mode.

    1. For host mode, select Y for Device Drivers > USB support > Support for Host-side USB.

    2. For device mode, select Y for Device Drivers > USB support > USB Gadget Support.

    3. For OTG mode, select Y for both Device Drivers > USB support > Support for Host-side USB and Device Drivers > USB support > USB Gadget Support.

    ../../_images/select_required_usb_mode.png

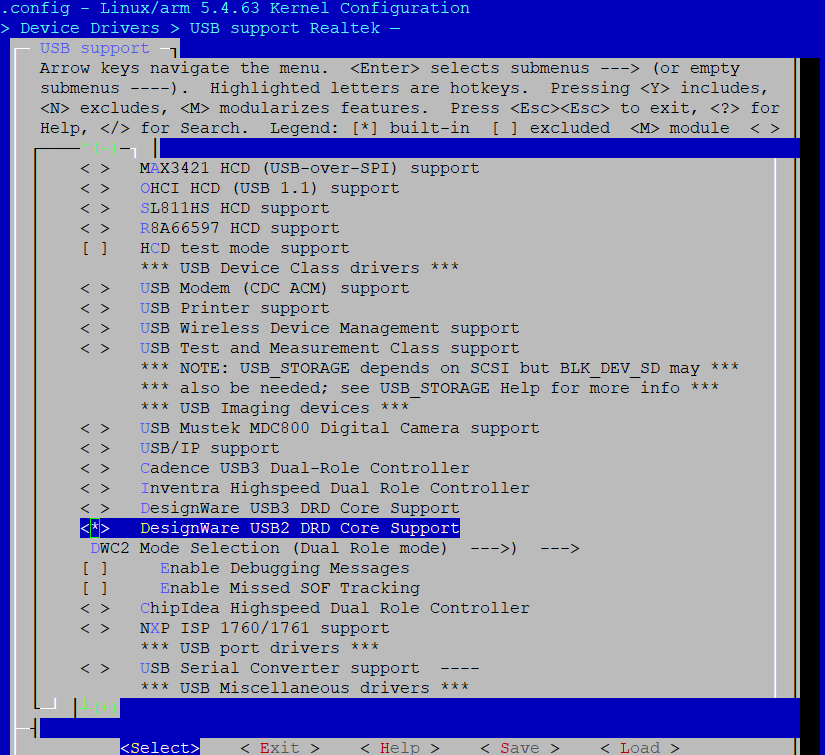

  4. Select Y for Device Drivers > USB support > DesignWare USB2 DRD Core Support.

    ../../_images/select_y_for_designware_usb2_drd_core_support.png

  5. Check DWC2 mode selection.

    1. For USB host, select Y for Host only mode

    2. For USB device, select Y for Gadget only mode

    3. For USB OTG mode, select Y for Dual Role mode.

    ../../_images/check_dwc2_mode_selection.png

  6. Select configurations for required class, refer to the following sections for details.

Module Configuration

To build USB functions as kernel modules:

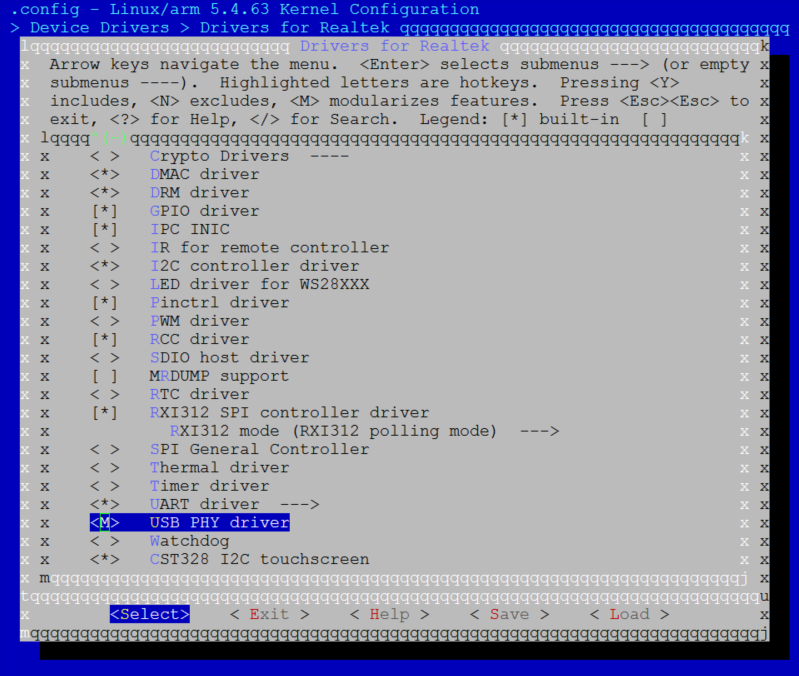

  1. Select M for Device Drivers > Drivers for Realtek > USB PHY driver

    ../../_images/select_m_for_usb_phy_driver_module.png

  2. Select Y for Device Drivers > USB support.

    ../../_images/select_y_for_usb_support.png

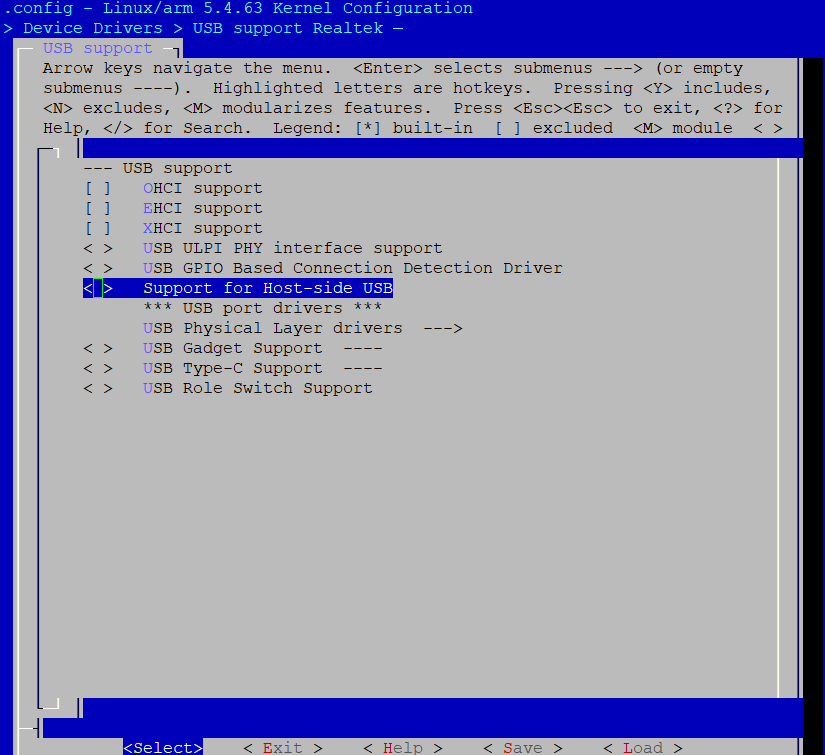

  3. Select required USB mode.

    1. For host mode, select M for Device Drivers > USB support > Support for Host-side USB.

    2. For device mode, select M for Device Drivers > USB support > USB Gadget Support.

    3. For OTG mode, select M for both Device Drivers > USB support > Support for Host-side USB and Device Drivers > USB support > USB Gadget Support.

    ../../_images/select_required_usb_mode.png

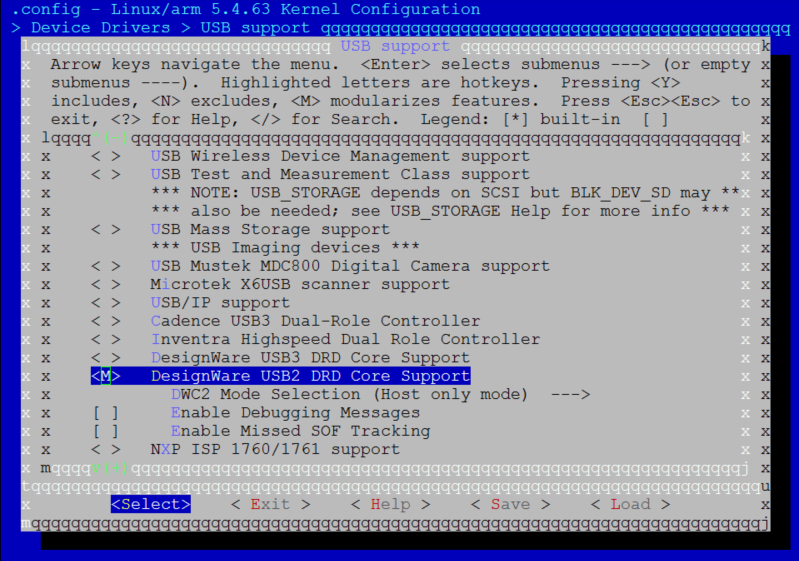

  4. Select M for Device Drivers > USB support > DesignWare USB2 DRD Core Support.

    ../../_images/select_m_for_designWare_usb2_drd_core_support.png

  5. Check DWC2 mode selection.

    1. For USB host, select Y for Host only mode

    2. For USB device, select Y for Gadget only mode

    3. For USB OTG mode, select Y for Dual Role mode.

    ../../_images/check_dwc2_mode_selection.png

  6. Select configurations for required class, refer to the following sections for details.

  7. Load kernel modules at runtime

    Where the <kernel_ver> below depends on the kernel version, such as 5.4.63.

    1. For host mode, type the following command sequences to load USB common host drivers before loading any USB class specific modules:

      insmod /lib/modules/<kernel_ver>/kernel/drivers/rtkdrivers/usb_phy/phy-rtk-usb.ko
insmod /lib/modules/<kernel_ver>/kernel/drivers/usb/common/usb-common.ko
insmod /lib/modules/<kernel_ver>/kernel/drivers/usb/core/usbcore.ko
insmod /lib/modules/<kernel_ver>/kernel/drivers/usb/dwc2/dwc2.ko

    2. For device mode, type the following command sequences to load USB common device drivers before loading any USB class specific modules:

      insmod /lib/modules/<kernel_ver>/kernel/drivers/rtkdrivers/usb_phy/phy-rtk-usb.ko
insmod /lib/modules/<kernel_ver>/kernel/drivers/usb/common/usb-common.ko
insmod /lib/modules/<kernel_ver>/kernel/drivers/usb/gadget/udc/udc-core.ko
insmod /lib/modules/<kernel_ver>/kernel/drivers/usb/gadget/libcomposite.ko
insmod /lib/modules/<kernel_ver>/kernel/drivers/usb/dwc2/dwc2.ko

USB Host Usage

In USB host mode, USB OTG can enumerate the attached USB device and initiate the USB transfer.

Only the usage of several host classes are described in this section, for more information, refer to https://www.kernel.org/doc/html/v5.4/usb/index.html.

CDC ACM Class

Configuration

Besides the common USB host configurations, extra configurations are required to support USB CDC ACM class driver, and user can choose to configure it as built-in functions or independent kernel modules.

The following configurations provide an example to support a typical CDC ACM device: USB serial port.

Adjust the configurations as required.

Built-in Configuration

Enter USB support menu, type Y to select USB Modem (CDC ACM) support and USB Serial Converter support options:

../../_images/type_y_usb_modem_support.png

Module Configuration

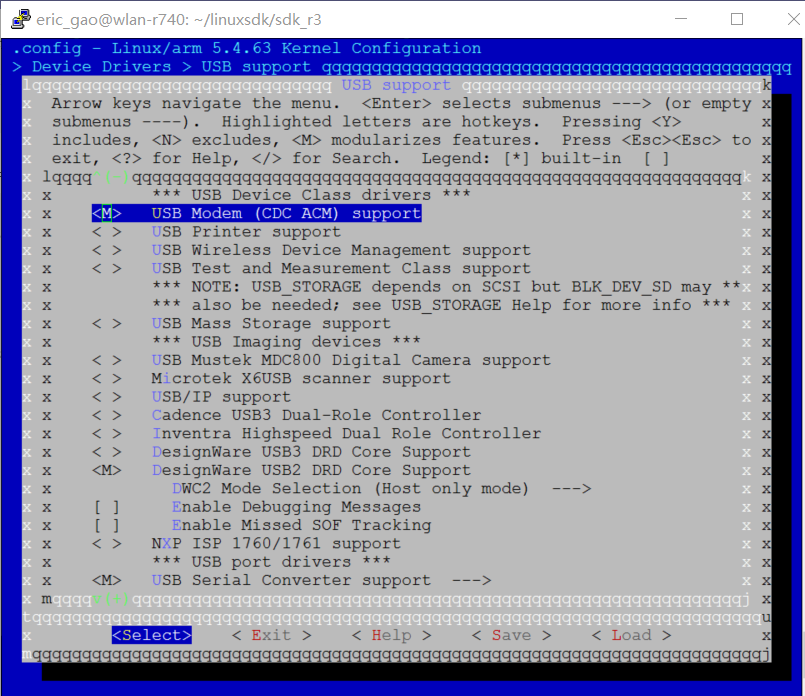

  1. Enter USB support menu, type M to select USB Modem (CDC ACM) support and USB Serial Converter support options:

    ../../_images/type_m_usb_modem_support.png

  2. Load kernel modules for CDC ACM class after loading common USB host modules.

    insmod /lib/modules/<kernel_ver>/kernel/drivers/usb/class/cdc-acm.ko
insmod /lib/modules/<kernel_ver>/kernel/drivers/usb/serial/usbserial.ko

APIs for Application

Refer to http://www.linux-usb.org/USB-guide/x332.html.

Usage

Once configured as a CDC ACM host, the SoC will recognize the attached CDC ACM device as a TTY device, and will be able to communicate with the CDC ACM device through TTY interface.

  1. Connect a CDC ACM device to SoC with USB cable, the following log will be printed on the console:

    dwc2 40080000.usb: Set speed to high-speed
usb 1-1: new high-speed USB device number 2 using dwc2
dwc2 40080000.usb: Set speed to high-speed
cdc_acm 1-1:1.0: ttyACM0: USB ACM device

  2. Communicate with the CDC ACM device through device node /dev/ttyACM0, for example:

    1. Send data to CDC ACM device:

      echo helloworld > /dev/ttyACM0

    2. Receive data from CDC ACM device:

      cat /dev/ttyACM0

Refer to <sdk>/tests/usbh_cdc_acm for CDC ACM host demo.

Mass Storage Class

Configuration

Besides the common USB host configurations, extra configurations are required to support USB mass storage class driver, and user can choose to configure it as built-in functions or independent kernel modules.

The following configurations provide an example to support a typical mass storage device: UDISK with Realtek card reader solution and formatted with FAT32 file system.

Common configurations required by USB mass storage class driver:

  1. Device Drivers > SCSI device support > SCSI device support and Device Drivers > SCSI device support > SCSI disk support:

    ../../_images/scsi_device_disk_support.png

  2. File systems > DOS/FAT/NT Filesystems > VFAT (Windows-95) fs support:

    ../../_images/vfat_windows_95_fs_support.png

  3. File systems > Native language support > Codepage 437(United States, Canada) and File systems > Native language support > NLS ISO 8859-1 (Latin 1; Western European Languages)`:

    ../../_images/codepage_437.png
    ../../_images/nls_ios_8859_1.png

Adjust the configurations as required.

Built-in Configuration

Enter USB support menu, type Y to select USB Mass Storage support and Realtek Card Reader support options:

../../_images/type_y_usb_mass_storage_support.png

Module Configuration

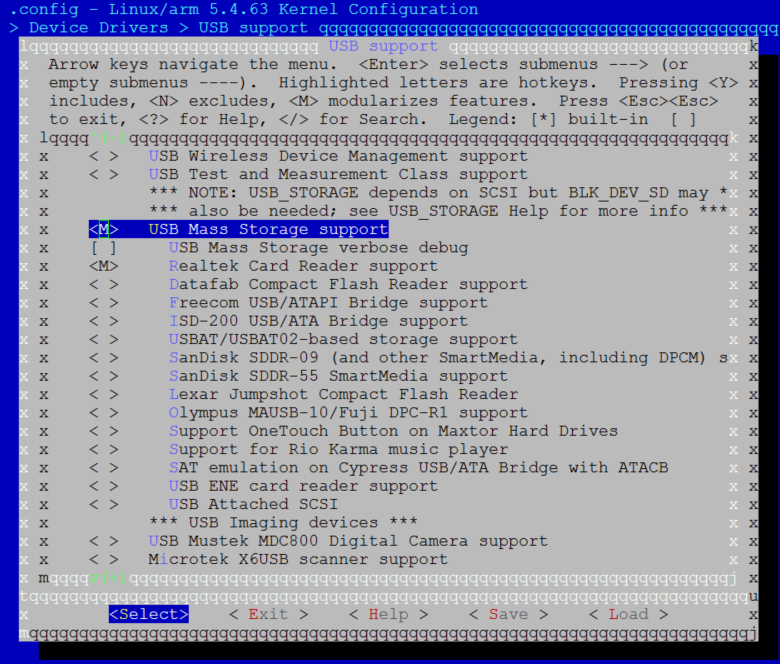

  1. Enter USB support menu, type M to select USB Mass Storage support and then Realtek Card Reader support options:

    ../../_images/type_m_usb_mass_storage_support.png

  2. Load kernel modules for mass storage class after loading common USB host modules.

    insmod /lib/modules/<kernel_ver>/kernel/drivers/usb/storage/usb-storage.ko
insmod /lib/modules/<kernel_ver>/kernel/drivers/usb/storage/ums-realtek.ko

APIs for Application

Refer to http://www.linux-usb.org/USB-guide/x498.html.

Usage

Here is the example to test the USB host mass storage driver with supported UDISK.

  1. Connect an UDISK to SoC, the following log will be printed on console.

    usb 1-1: USB disconnect, device number 2
dwc2 40080000.usb: Set speed to high-speed
usb 1-1: new high-speed USB device number 3 using dwc2
dwc2 40080000.usb: Set speed to high-speed
usb-storage 1-1:1.0: USB Mass Storage device detected
scsi host0: usb-storage 1-1:1.0
scsi 0:0:0:0: Direct-Access TOSHIBA USB FLASH DRIVE PMAP PQ: 0 ANSI: 6
sd 0:0:0:0: [sda] 30253056 512-byte logical blocks: (15.5 GB/14.4 GiB)
sd 0:0:0:0: [sda] Write Protect is off
sd 0:0:0:0: [sda] Write cache: disabled, read cache: enabled, doesn't support DPO or FUA
sda: sda1
sd 0:0:0:0: [sda] Attached SCSI removable disk

  2. Mount UDISK device.

    mkdir /mnt/udisk
mount -t vfat /dev/sda1 /mnt/udisk

  3. Access UDISK device. Create a file and write/read it.

    cd /mnt/udisk
echo hello >> test.txt
cat test.txt
hello

  4. Unmount UDISK device

    umount /mnt/udisk

  5. Disconnect the UDISK device

    usb 1-1: USB disconnect, device number 2

UVC Class

Configuration

Besides the common USB host configurations, extra configurations are required to support USB UVC class driver, and user can choose to configure it as built-in functions or independent kernel modules.

The following configurations provide an example to support a typical UVC device: UVC camera.

Common configurations required by UVC camera, selected as default in SDK:

  1. Device Drivers > Multimedia support

    ../../_images/multimedia_support.png

  2. Device Drivers > Multimedia support > Cameras/video grabbers support, Media Controller API, V4L2 sub-device userspace API, Media USB Adapters:

    ../../_images/options_in_multimedia_support.png

Built-in Configuration

Enter Media USB Adapters and type Y to select USB Video Class (UVC):

../../_images/y_for_usb_video_class.png

Module Configuration

  1. Enter Media USB Adapters and type M to select USB Video Class (UVC) :

    ../../_images/m_for_usb_video_class.png

  2. Load kernel modules about UVC class after loading common USB host modules.

    insmod /lib/modules/<kernel_ver>/kernel/drivers/media/usb/uvc/uvcvideo.ko

APIs for Application

It treats UVC device as a V4L2 device. Refer to https://www.kernel.org/doc/html/latest/userspace-api/media/v4l/v4l2.html to get more information about V4L2 API.

Usage

The following is a usage simple for a typical UVC device: USB camera.

Once the USB camera is plugged into USB cable, the following log will print on console.

dwc2 40080000.usb: Set speed to high-speed
usb 1-1: new high-speed USB device number 2 using dwc2
dwc2 40080000.usb: Set speed to high-speed
uvcvideo: Found UVC 1.00 device USB Camera (0bda:5842)
input: USB Camera: USB Camera as /devices/platform/ocp/40080000.usb/usb1/1-1/1-1:1.0/input/input1

User can use IOCTL with V4L2 library API to access USB camera.

Find the UVC demo at <sdk>/tests/usbh_uvc, which is an example that capture image from UVC camera and save it to a SD card.

Note

SD card shall be mounted before running the UVC demo.

Vendor Class

Vendor class is designed for user to develop customized USB host class.

Configuration

Besides the common USB host configurations, extra configurations are required to support USB vendor class driver, and user can choose to configure it as built-in functions or independent kernel modules.

Built-in Configuration

Type Y to select USB testing driver:

../../_images/y_for_usb_testing_driver.png

Module Configuration

  1. Type M to select USB testing driver:

    ../../_images/m_for_usb_testing_driver.png

  2. Load kernel modules about vendor class after loading common USB host modules.

    insmod /lib/modules/<kernel_ver>/kernel/drivers/usb/misc/usbtest.ko

APIs for Application

None.

Usage

Find the USB host vendor demo for user space at <sdk>/tests/usbh_vendor.

USB Gadget Usage

In USB gadget mode, USB OTG can be enumerated by the attached USB host and response the USB transfer requests.

There are two configuration mode for USB gadget classes:

  • Configfs mode: USB Gadget functions configurable through configfs

  • Legacy mode: USB Gadget precomposed configurations

The configfs mode is adopted in this section.

Only the usage of several device classes are described in this section, refer to https://www.kernel.org/doc/html/v5.4/usb/index.html for more information.

CDC ACM Class

Configuration

Besides the common USB device configurations, extra configurations are required to support USB CDC ACM class, and user can choose to configure it as built-in functions or independent kernel modules.

Built-in Configuration

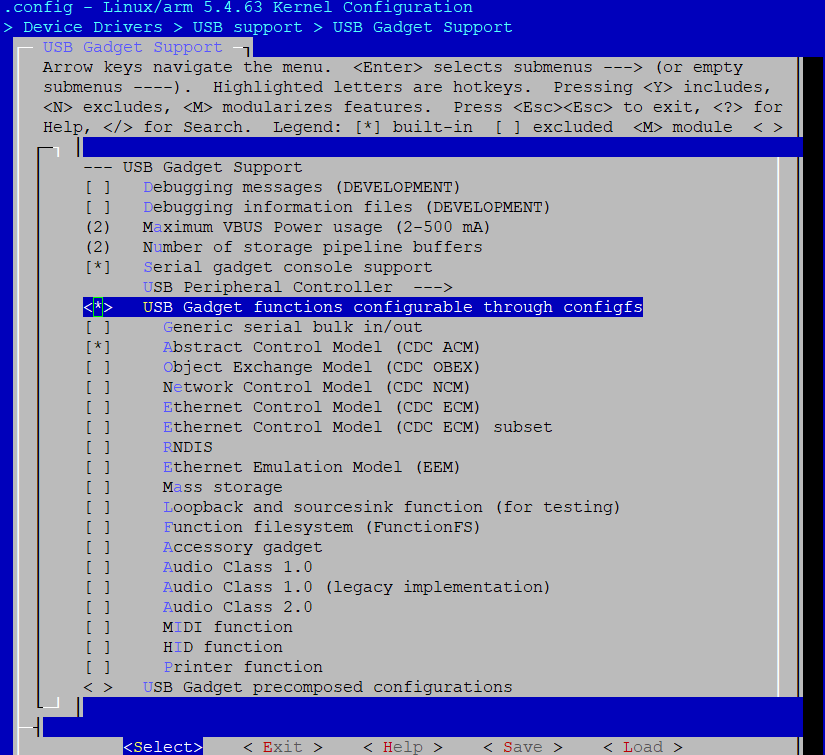

Type Y to select the following options in USB Gadget Support:

  • USB Gadget functions configurable through configfs

  • Serial gadget console support

  • Abstract Control Model (CDC ACM)

    ../../_images/cdc_acm_built_in_configuration_options_usb_gadget_support.png

Module Configuration

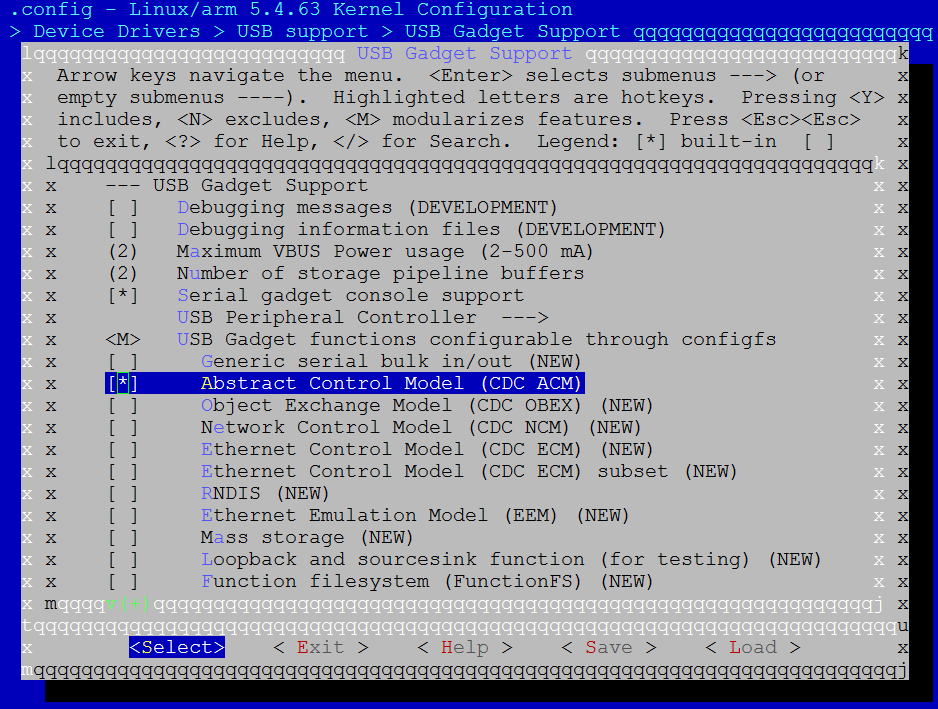

  1. Select the following options in USB Gadget Support:

    • Type M to select USB Gadget functions configurable through configfs

    • Type Y to select Serial gadget console support

    • Type Y to select Abstract Control Model (CDC ACM)

    ../../_images/cdc_acm_module_configuration_options_usb_gadget_support.png

  2. Load kernel modules about CDC ACM class after loading common USB device modules.

    insmod /lib/modules/<kernel_ver>/kernel/drivers/usb/gadget/function/u_serial.ko
insmod /lib/modules/<kernel_ver>/kernel/drivers/usb/gadget/function/usb_f_acm.ko

APIs for Application

Refer to http://www.linux-usb.org/USB-guide/x498.html.

Usage

Here is an example to set the board as a CDC ACM device.

  1. Connect the board to PC via USB cable.

  2. Run the following commands in board console.

    mkdir /mnt/config
mount none /mnt/config -t configfs
cd /mnt/config/usb_gadget
mkdir cdc && cd cdc
echo 0x0200 > bcdUSB
echo 0x02 > bDeviceClass
echo 0x02 > bDeviceSubClass
echo 64 > bMaxPacketSize0
echo 0x8730 > idProduct
echo 0x0BDA > idVendor
mkdir strings/0x409
echo "Realtek" > strings/0x409/manufacturer
echo "VCOM" > strings/0x409/product
echo "123456789AB" > strings/0x409/serialnumber
mkdir configs/c.1
echo 120 > configs/c.1/MaxPower
mkdir configs/c.1/strings/0x409
echo "acm" > configs/c.1/strings/0x409/configuration
mkdir functions/acm.ttyS1
ln -s functions/acm.ttyS1 configs/c.1/
echo 40080000.usb > UDC

  3. Find the correct COM on PC, and open it.

  4. Send 12345 from board to PC COM.

    Input command from board console:

    echo 12345 > /dev/ttyGS0

    PC COM will receive string 12345.

  5. Receive strings from PC COM.

    Input command from board console:

    cat /dev/ttyGS0

    Send string 12345 from PC COM, then board will receive string 12345.

Note

Win7 cannot drive CDC ACM device directly. Specific driver needs to be installed: <sdk>/tools/image_tool/RtkUsbCdcAcmSetup.INF. And the PID / VID in this driver should be consistent with the CDC ACM device descriptor.

Note

If PC COM cannot be opened, comment following code in <linux>/drivers/usb/gadget/function/f_acm.c for temporary workaround:

static int acm_cdc_notify(struct f_acm *acm, u8 type, u16 value,
void *data, unsigned length)
{

/* ep_queue() can complete immediately if it fills the fifo... */
spin_unlock(&acm->lock);
//status = usb_ep_queue(ep, req, GFP_ATOMIC);
spin_lock(&acm->lock);
}

HID Class

Configuration

Besides the common USB device configurations, extra configurations are required to support USB HID class, and user can choose to configure it as built-in functions or independent kernel modules.

Make sure HID bus support and Generic HID driver are selected:

../../_images/hid_bus_support_generic_hid_driver.png

Actually, above configurations are enabled as default in SDK to support ADB.

Built-in Configuration

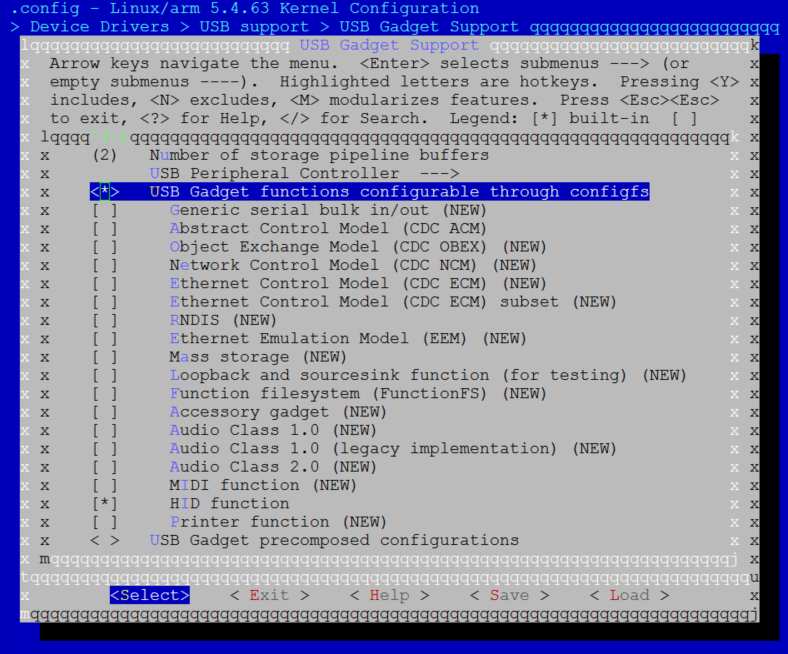

  1. Type Y to select the following options in USB Gadget Support:

    • USB Gadget functions configurable through configfs

    • Serial gadget console support

    • HID function

    ../../_images/hid_built_in_configuration_options_usb_gadget_support.png

Module Configuration

  1. Select the following items in USB Gadget Support:

    • Type M to select USB Gadget functions configurable through configfs

    • Type Y to select HID function

    ../../_images/hid_module_configuration_options_usb_gadget_support.png

  2. Load kernel modules about HID class after loading common USB device modules:

    insmod /lib/modules/<kernel_ver>/kernel/drivers/usb/gadget/function/udc-core.ko
insmod /lib/modules/<kernel_ver>/kernel/drivers/usb/gadget/function/usb_f_hid.ko

APIs for Application

Refer to http://www.linux-usb.org/USB-guide/x498.html.

Usage

Here is an example to set the board as a HID mouse device.

  1. Configure USB device:

    mkdir /mnt/config
mount none /mnt/config -t configfs
cd /mnt/config/usb_gadget
mkdir hid
cd hid
echo 0x0200 > bcdUSB
echo 0x03 > bDeviceClass
echo 0x00 > bDeviceSubClass
echo 64 > bMaxPacketSize0
echo 0x8730 > idProduct
echo 0x0BDA > idVendor
mkdir strings/0x409
echo "Realtek" > strings/0x409/manufacturer
echo "HID" > strings/0x409/product
echo "123456789AB" > strings/0x409/serialnumber
mkdir configs/c.1
echo 120 > configs/c.1/MaxPower
mkdir configs/c.1/strings/0x409
echo "Primary configuration" > configs/c.1/strings/0x409/configuration

  2. Configure HID report descriptor:

    mkdir functions/hid.usb0
echo 1 > functions/hid.usb0/subclass
echo 2 > functions/hid.usb0/protocol
echo 4 > functions/hid.usb0/report_length
echo -ne\\x05\\x01\\x09\\x02\\xa1\\x01\\x09\\x01\\xa1\\x00\\x05\\x09\\x19\\x01\\x29\\x03\\x15\\x00\\x25\\x01\\x95\\x03\\x75\\x01\\x81\\x02\\x95\\x01\\x75\\x05\\x81\\x03\\x05\\x01\\x09\\x30\\x09\\x31\\x09\\x38\\x15\\x81\\x25\\x7f\\x75\\x08\\x95\\x03\\x81\\x06\\xc0\\xc0> functions/hid.usb0/report_desc
ln -s functions/hid.usb0 configs/c.1/
echo 40080000.usb > UDC

Once connect the board to HID host, use can use interface “/dev/hidg0” to communicate with host. The following is an example that make the cursor move 0x40 pixels to the right and down:

echo -ne "\0\x40\x40\0" > /dev/hidg0

The following is mouse protocol.

BYTE0
|-- bit7~bit3: RSVD
|-- bit2: middle button press
|-- bit1: right button press
|-- bit0: left button press
BYTE1: x-axis value, -128~127
BYTE2: y-axis value, -128~127
BYTE3: wheel value, -128~127

Mass Storage Class

Configuration

Besides the common USB device configurations, extra configurations are required to support USB mass storage class, and user can choose to configure it as built-in functions or independent kernel modules.

Built-in Configuration

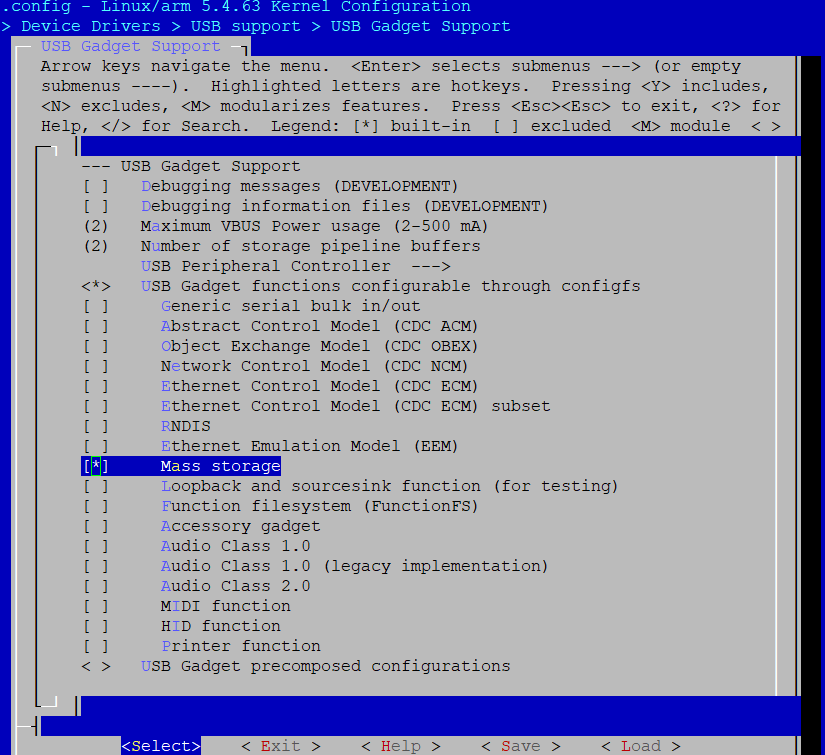

  1. Type Y to select the following options in USB Gadget Support:

    • USB Gadget functions configurable through configfs

    • Mass storage

    ../../_images/mass_storage_built_in_configuration_options_usb_gadget_support.png

Module Configuration

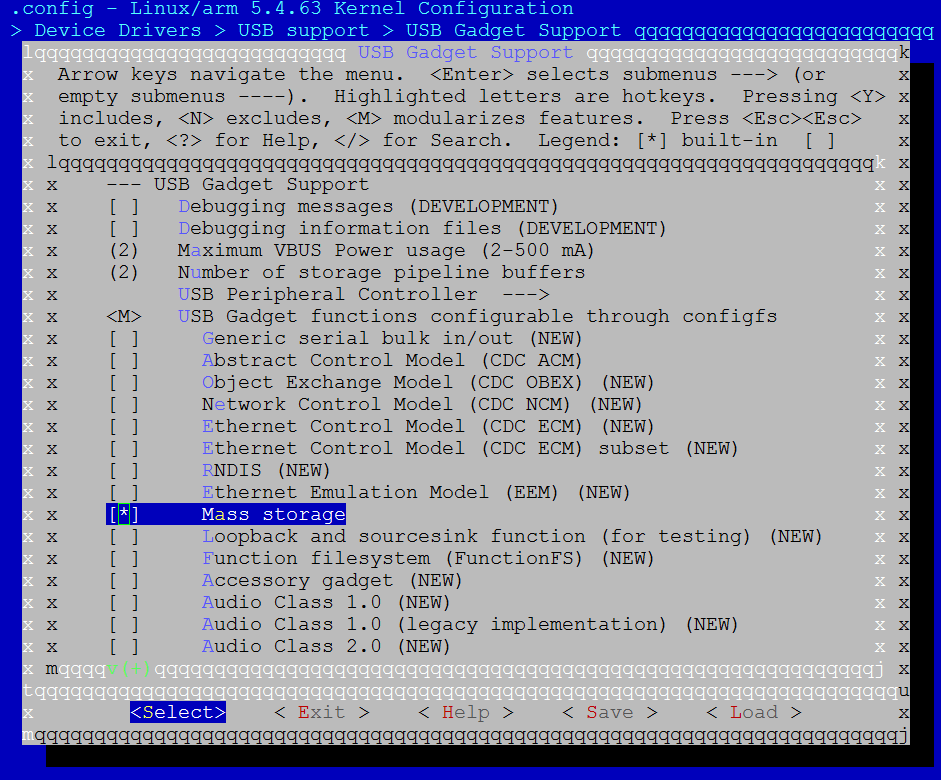

  1. Select the following items in USB Gadget Support:

    • Type M to select USB Gadget functions configurable through configfs

    • Type Y to select Mass storage

    ../../_images/mass_storage_module_configuration_options_usb_gadget_support.png

  2. Load kernel modules about MSC class after loading common USB device modules.

insmod /lib/modules/<kernel_ver>/kernel/drivers/usb/gadget/function/udc-core.ko
insmod /lib/modules/<kernel_ver>/kernel/drivers/usb/gadget/function/usb_f_mass_storage.ko
insmod /lib/modules/<kernel_ver>/kernel/drivers/usb/gadget/function/libcomposite.ko

APIs for Application

Refer to http://www.linux-usb.org/USB-guide/x498.html.

Usage

Example to set the board as a USB gadget mass storage device, with SD card as storage media:

  1. Configure SD card of the board, refer to Chapter SDIO Host for details.

  2. Connect the board to PC.

  3. Run the following commands in board console.

    mkdir /mnt/config
mount none /mnt/config -t configfs
cd /mnt/config/usb_gadget
mkdir msc && cd msc
echo 0x0200 > bcdUSB
echo 0x8730 > idProduct
echo 0x0BDA > idVendor
mkdir strings/0x409
echo "Realtek" > strings/0x409/manufacturer
echo "MSC" > strings/0x409/product
echo "123456789AB" > strings/0x409/serialnumber
mkdir configs/c.1
echo 120 > configs/c.1/MaxPower
mkdir configs/c.1/strings/0x409
echo "mass_storage" > configs/c.1/strings/0x409/configuration
mkdir functions/mass_storage.0
echo /dev/mmcblk0 >functions/mass_storage.0/lun.0/file
echo 1 > functions/mass_storage.0/lun.0/removable
echo 0 > functions/mass_storage.0/lun.0/nofua
ln -s functions/mass_storage.0 configs/c.1/
echo 40080000.usb > UDC

The board will be recognized as a UDISK on PC.

Vendor Class

Vendor class is designed for user to develop customized USB device class.

Configuration

Besides the common USB device configurations, extra configurations are required to support USB vendor class driver, and user can choose to configure it as built-in functions or independent kernel modules.

Built-in Configuration

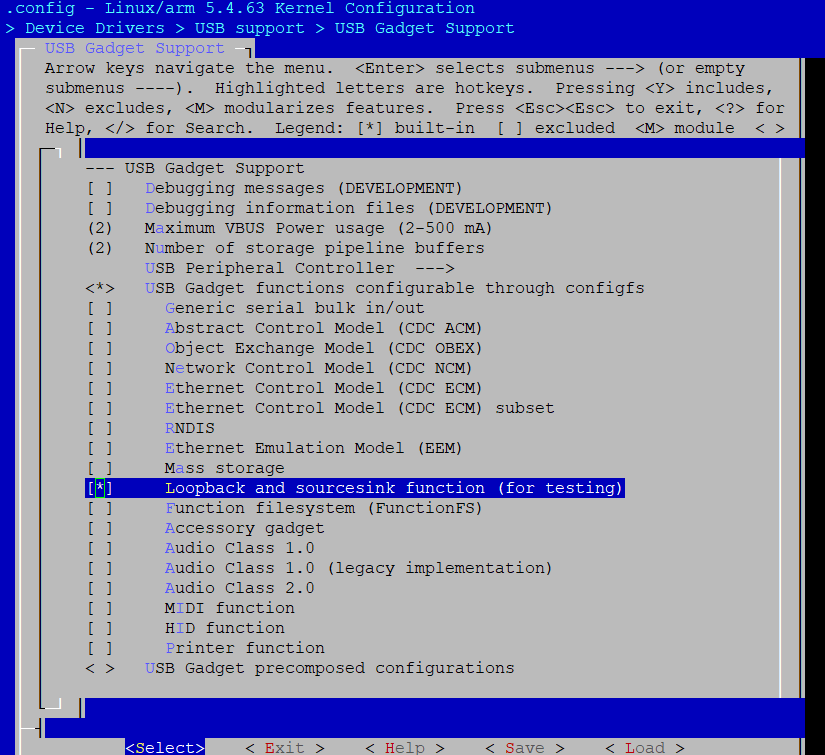

  1. Type Y to select the following options in USB Gadget Support:

    • USB Gadget functions configurable through configfs

    • Loopback and sourcesink function (for testing)

    ../../_images/vendor_built_in_configuration_options_usb_gadget_support.png

Module Configuration

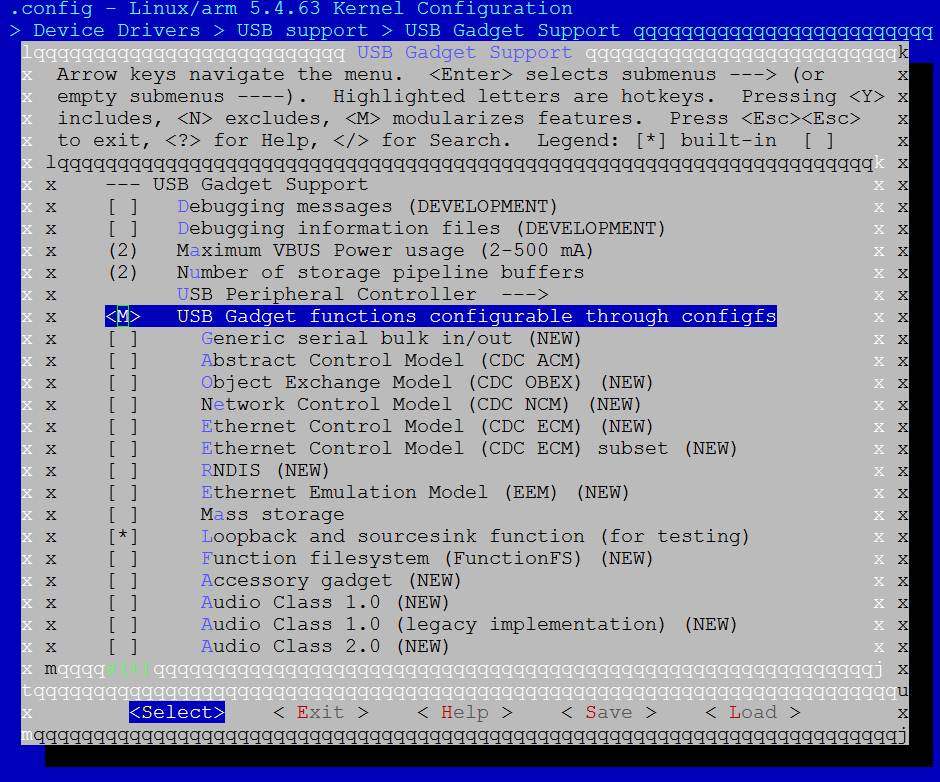

  1. Select the following options in USB Gadget Support:

    • Type M to select USB Gadget functions configurable through configfs

    • Type Y to select Loopback and sourcesink function (for testing)

    ../../_images/vendor_module_configuration_options_usb_gadget_support.png

  2. Load kernel modules about vendor class after loading common USB device modules.

    insmod /lib/modules/<kernel_ver>/kernel/drivers/usb/gadget/function/udc-core.ko
insmod /lib/modules/<kernel_ver>/kernel/drivers/usb/gadget/function/usb_f_ss_lb.ko
insmod /lib/modules/<kernel_ver>/kernel/drivers/usb/gadget/function/libcomposite.ko

APIs for Application

None.

Usage

Here are the steps to test USB gadget vendor class:

  1. Run the following commands in board console.

    mkdir /mnt/config
mount none /mnt/config -t configfs
cd /mnt/config/usb_gadget
mkdir vendor && cd vendor
echo 0x0200 > bcdUSB
echo 0xa4a0 > idProduct
echo 0x0525 > idVendor
mkdir strings/0x409
echo "Realtek" > strings/0x409/manufacturer
echo "Vendor" > strings/0x409/product
echo "123456789AB" > strings/0x409/serialnumber
mkdir configs/c.1
mkdir configs/c.2
echo 120 > configs/c.1/MaxPower
echo 120 > configs/c.2/MaxPower
mkdir configs/c.1/strings/0x409
mkdir configs/c.2/strings/0x409
echo "vendor1" > configs/c.1/strings/0x409/configuration
echo "vendor2" > configs/c.2/strings/0x409/configuration
mkdir functions/SourceSink.0
mkdir functions/Loopback.0
ln -s functions/SourceSink.0 configs/c.1/
ln -s functions/Loopback.0 configs/c.2/
echo 40080000.usb > UDC

Note

Since vendor class is a composite device, so:

  • ln -s functions/SourceSink.0 configs/c.1/ means default function is sourcesink.

  • ln -s functions/Loopback.0 configs/c.1/ means default function is loopback.

  1. Connect the board to USB host vendor.

  2. Host vendor and device vendor test each other.

    Function

    Configfs setting

    Host console command

    Device console command

    loopback

    ln -s functions/Loopback.0 configs/c.1/

    testusb -a -c1 -t30 -s256 -g32 -v1

    No need command

    sourcesink

    ln -s functions/SourceSink.0 configs/c.1/

    testusb -a -c1 -tx -s256 -g32 -v1

    No need command

Note

For host testing driver, case 30 is used to test loopback function, so host command -t30 cannot change, other parameters can be modified by user. Case 0~29 are used to test sourcesink function, so -tx, x means a number in 0~29.
