J-Link Hardware Connection

Refer to the following diagram to connect J-Link’s SWCLK and SWDIO to the SoC’s SWD CLK and SWD DATA, then connect J-Link to the PC.

../../_images/connecting_jlink_to_swd.svg — Wiring diagram of connecting J-Link to SWD

Note

The J-Link version must be v9 or higher.

J-Link Software Connection & Configuration

Download and install the latest GDB Server from SEGGER official website:

Connect J-Link

Double-click {SDK}\amebadplus_gcc_project\utils\jlink_script\cm4_jlink.bat. As shown below, confirm successful connection between KM4 and J-Link:

../../_images/dplus_windows_km4_jlink_gdb_server_connection.png

Caution

Edit cm4_jlink.bat to modify paths for JLinkGDBServer.exe and JLink.exe as needed
Keep this window open for subsequent operations

Configure J-Link

Open a new terminal and navigate to project_km4 directory
Execute command:
```
$ make setup GDB_SERVER=jlink
```

Operation example:

../../_images/dplus_windows_km4_jlink_setup.png

Connect J-Link

Double-click {SDK}\amebadplus_gcc_project\utils\jlink_script\cm0_jlink.bat. As shown below, confirm successful connection between KM0 and J-Link:

../../_images/dplus_windows_km0_jlink_gdb_server_connection.png

Configure J-Link

Open a new terminal and navigate to project_km0 directory
Execute command:
```
$ make setup GDB_SERVER=jlink
```

Operation example:

../../_images/dplus_windows_km0_jlink_setup.png

Connect J-Link

Double-click {SDK}\amebalite_gcc_project\utils\jlink_script\km4_jlink_combination.bat. Confirm KM4-JLink connection as shown:

../../_images/lite_windows_km4_jlink_gdb_server_connection.png

Caution

Edit km4_jlink_combination.bat to modify JLinkGDBServer.exe/JLink.exe paths
Keep this window open for subsequent operations

Configure J-Link

Open new terminal and navigate to project_km4
Execute command:
```
$ make setup GDB_SERVER=jlink
```

Operation example:

../../_images/lite_windows_km4_jlink_setup.png

Connect J-Link

Double-click {SDK}\amebalite_gcc_project\utils\jlink_script\kr4_jlink_combination.bat. Confirm KR4-JLink connection as shown:

../../_images/lite_windows_kr4_jlink_gdb_server_connection.png

Configure J-Link

Open new terminal and navigate to project_kr4
Execute command:
```
$ make setup GDB_SERVER=jlink
```

Operation example:

../../_images/lite_windows_kr4_jlink_setup.png

Connect J-Link

Double-click {SDK}\amebalite_gcc_project\utils\jlink_script\km4_jlink_combination.bat. Confirm KM4-JLink connection as shown:

Caution

Edit km4_jlink_combination.bat to modify JLinkGDBServer.exe/JLink.exe paths
Keep this window open for subsequent operations

Configure J-Link

Open new terminal and navigate to project_km4
Execute command:
```
$ make setup GDB_SERVER=jlink
```

Operation example:

Connect J-Link

Double-click {SDK}\amebalite_gcc_project\utils\jlink_script\kr4_jlink_combination.bat. Confirm KR4-JLink connection as shown:

Configure J-Link

Open new terminal and navigate to project_kr4
Execute command:
```
$ make setup GDB_SERVER=jlink
```

Operation example:

CA32 features symmetric dual-core architecture supporting independent debugging. Core-specific scripts:

ca32_jlink_core0.bat (default port 2337)
ca32_jlink_core1.bat (default port 2339)

Caution

Enabling GDB server for core1 may cause both cores to halt on breakpoints/watchpoints, but resuming core1 won’t trigger core0 (J-Link limitation).
To debug cores independently, comment EnableCrossTrigger() in AP3_CA32_Corex. JLinkScript:

void InitTarget(void) {
   Report("******************************************************");
   Report("J-Link script: AmebaSmart (Cortex-A32 CPU0) J-Link script");
   Report("******************************************************");
   /* … */
   //EnableCrossTrigger();  // Comment as needed
}

Connect J-Link

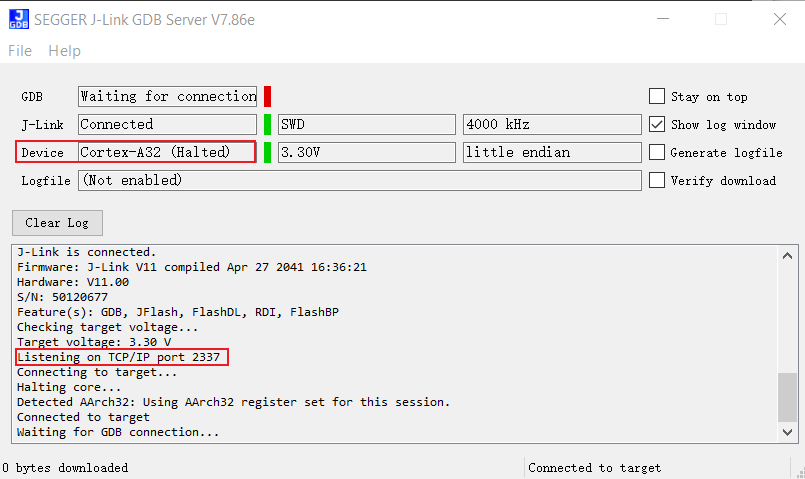

Core0 connection:

Double-click {SDK}\amebasmart_gcc_project\utils\jlink_script\ca32_jlink_core0.bat

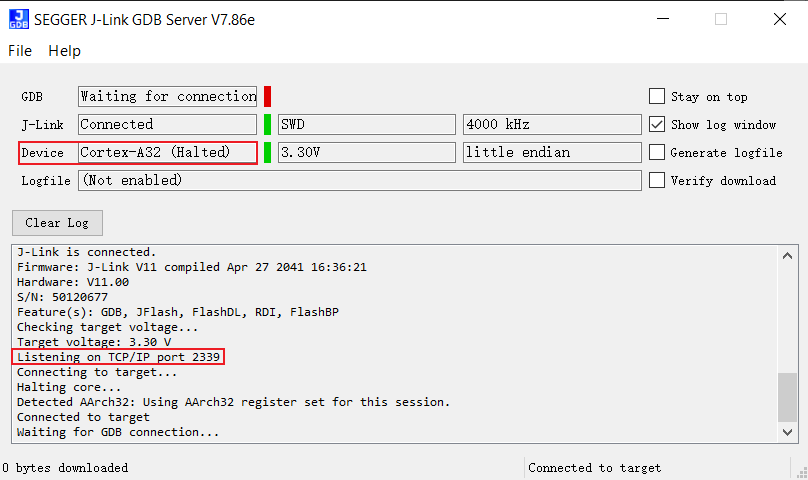

Core1 connection:

Double-click {SDK}\amebasmart_gcc_project\utils\jlink_script\ca32_jlink_core1.bat

Configure J-Link

TBD

Connect J-Link

Double-click {SDK}\amebasmart_gcc_project\utils\jlink_script\cm4_jlink.bat

../../_images/smart_km4_jlink_gdb_server_connection_under_windows.png

Caution

Edit cm4_jlink.bat to modify JLinkGDBServer.exe/JLink.exe paths
Keep this window open for subsequent operations

Configure J-Link

Navigate to project_km4 directory
Execute command:
```
$ make setup GDB_SERVER=jlink
```

Connect J-Link

Double-click {SDK}\amebasmart_gcc_project\utils\jlink_script\cm0_jlink.bat

../../_images/smart_km0_jlink_gdb_server_connection_under_windows.png

Configure J-Link

Navigate to project_km0 directory
Execute command:
```
$ make setup GDB_SERVER=jlink
```

Deploy GDB Server with these steps:

Download latest J-Link package
Execute installation command:

$ dpkg -i jlink_6.0.7_x86_64.deb
Verify installation:

/opt/SEGGER/JLink/JLinkGDBServer

Connect J-Link

Open a new terminal and navigate to directory /amebadplus_gcc_project/utils/jlink_script
Execute the command:

$/opt/SEGGER/JLink/JLinkGDBServer -select USB-device Cortex-M33 -if SWD -scriptfile AP2_KM4.JLinkScript port 2335

../../_images/dplus_linux_km4_jlink_gdb_server_connection.png

../../_images/dplus_linux_km4_jlink_gdb_server_connection_success.png

Configure J-Link

Open a new terminal and navigate to directory project_km4
Execute the command:

$make setup GDB_SERVER=jlink

../../_images/dplus_linux_km4_jlink_setup.png

Connect J-Link

Open a new terminal and navigate to directory /amebadplus_gcc_project/utils/jlink_script
Execute the command:

$/opt/SEGGER/JLink/JLinkGDBServer -select USB -device Cortex-M23 -if SWD -scriptfile AP1_KM0.JLinkScript port 2331

../../_images/dplus_linux_km0_jlink_gdb_server_connection.png

../../_images/dplus_linux_km0_jlink_gdb_server_connection_success.png

Configure J-Link

Open a new terminal and navigate to directory project_km0
Execute the command:

$make setup GDB_SERVER=jlink

../../_images/dplus_linux_km0_jlink_setup.png

Connect J-Link

Open a new terminal and navigate to directory amebalite_gcc_project/utils/jlink_script
Execute the command:

$/opt/SEGGER/JLink/JLinkGDBServer -select USB-device Cortex-M33 -if SWD -scriptfile AP0_KM4.JLinkScript port 2335

../../_images/lite_linux_km4_jlink_gdb_server_connection.png

../../_images/lite_linux_km4_jlink_gdb_server_connection_success.png

Configure J-Link

Open a new terminal and navigate to directory project_km4
Execute the command:

$make setup GDB_SERVER=jlink

../../_images/lite_linux_km4_jlink_setup.png

KM4 Connection

Open a new terminal and navigate to directory amebalite_gcc_project/utils/jlink_script
Execute the command:

$/opt/SEGGER/JLink/JLinkExe -device Cortex-M33 -if swd -autoconnect 1 -speed 1000 -JLinkScriptFile KM4_SEL.JLinkScript

../../_images/lite_linux_kr4_setup_km4_jlink_gdb_server_connection.png

../../_images/lite_linux_kr4_setup_km4_jlink_gdb_server_connection_success.png

KR4 Connection

After completing KM4 connection, execute in the same directory:

$/opt/SEGGER/JLink/JLinkGDBServer -select USB-device RV32 -if cjtag -port 2331
Note: Keep this terminal open for KR4 debugging (KM4 terminal can be closed)

../../_images/lite_linux_kr4_jlink_gdb_server_connection.png

../../_images/lite_linux_kr4_jlink_gdb_server_connection_success.png

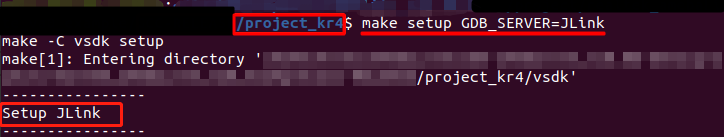

Configure J-Link

Open a new terminal and navigate to directory project_kr4
Execute the command:

$make setup GDB_SERVER=jlink

../../_images/lite_linux_kr4_jlink_setup.png

Connect J-Link

Open a new terminal and navigate to directory amebalite_gcc_project/utils/jlink_script
Execute the command:

$/opt/SEGGER/JLink/JLinkGDBServer -select USB-device Cortex-M33 -if SWD -scriptfile AP0_KM4.JLinkScript port 2335

Configure J-Link

Open a new terminal and navigate to directory project_km4
Execute the command:

$make setup GDB_SERVER=jlink

KM4 Connection

Open a new terminal and navigate to directory amebalite_gcc_project/utils/jlink_script
Execute the command:

$/opt/SEGGER/JLink/JLinkExe -device Cortex-M33 -if swd -autoconnect 1 -speed 1000 -JLinkScriptFile KM4_SEL.JLinkScript

KR4 Connection

After completing KM4 connection, execute in the same directory:

$/opt/SEGGER/JLink/JLinkGDBServer -select USB-device RV32 -if cjtag -port 2331
Note: Keep this terminal open for KR4 debugging (KM4 terminal can be closed)

Configure J-Link

Open a new terminal and navigate to directory project_kr4
Execute the command:

$make setup GDB_SERVER=jlink

Open a new terminal and navigate to the directory {SDK}/amebasmart_gcc_project/utils/jlink_script
Execute the command:

$/opt/SEGGER/JLink/JLinkGDBServer -device cortex-a32 -if SWD -scriptfile AP3_CA32_Core0.JLinkScript -port 2337

../../_images/smart_ca32_core0_jlink_gdb_server_connection.png

Open a new terminal and navigate to the directory {SDK}/amebasmart_gcc_project/utils/jlink_script
Execute the command:

$/opt/SEGGER/JLink/JLinkGDBServer -device cortex-a32 -if SWD -scriptfile AP3_CA32_Core1.JLinkScript -port 2339

../../_images/smart_ca32_core1_jlink_gdb_server_connection_under_linux.png

Open a new terminal and navigate to the directory {SDK}/amebasmart_gcc_project/utils/jlink_script
Execute the command:

$/opt/SEGGER/JLink/JLinkGDBServer -device cortex-m33 -if SWD -scriptfile AP1_KM4.JLinkScript -port 2335

../../_images/smart_km4_jlink_gdb_server_connection_success.png

Open a new terminal and navigate to the directory {SDK}/amebasmart_gcc_project/utils/jlink_script
Execute the command:

$/opt/SEGGER/JLink/JLinkGDBServer -device cortex-m23 -if SWD -scriptfile AP0_KM0.JLinkScript -port 2331

../../_images/smart_km0_jlink_gdb_server_connection_success.png

Firmware Burning via J-Link

We recommend using Realtek’s Image Tool software for firmware download. For more information, please refer to Image Tool.

If you must use J-Link to download the firmware, please follow the instructions below:

Compile the image (refer to Building Code) and connect J-Link
Enter the build.py -gdb command to start the download. The firmware will be downloaded to Flash, and the process will take a few seconds, as shown below:

../../_images/downloading_image_to_flash.png — Downloading firmware to Flash

../../_images/download_codes_success.png — Successful download log prompt

To confirm that the firmware has been correctly downloaded, you can select verify download before downloading. During the firmware download, there will be a verified OK log prompt.

../../_images/verify_download.png — Verify download

After the download is complete, press the Reset button to see the device boot with the new firmware.

Debug Mode Entry Process

Build Image and Connect J-Link

Execute Debug Commands

Navigate to SDK root directory
Run build.py -debug
Select device-specific command:

KM4:

"{Jlink_path}\JLink.exe" -device Cortex-M33 -if SWD -speed 4000 -autoconnect 1

KM0:

"{Jlink_path}\JLink.exe" -device Cortex-M23 -if SWD -speed 4000 -autoconnect 1

KM4:

"{Jlink_path}\JLink.exe" -device Cortex-M33 -if SWD -speed 4000 -autoconnect 1

KR4:

First:

"{Jlink_path}\JLink.exe" -device Cortex-M33 -if SWD -speed 4000 -autoconnect 1 -JLinkScriptFile {script_path}\KM4_SEL.JLinkScript

Then:

"{Jlink_path}\JLink.exe" -device RV32 -if cjtag -speed 4000 -JTAGConf -1,-1 -autoconnect 1

KR4 -> KM4:

First:

"{Jlink_path}\JLink.exe" -device RV32 -if cjtag -speed 4000 -JTAGConf -1,-1 -JLinkScriptFile {script_path}\KR4_DMI.JLinkScript

Then:

"{Jlink_path}\JLink.exe" -device Cortex-M33 -if SWD -speed 4000 -autoconnect 1

KM4:

"{Jlink_path}\JLink.exe" -device Cortex-M33 -if SWD -speed 4000 -autoconnect 1

KR4:

First:

"{Jlink_path}\JLink.exe" -device Cortex-M33 -if SWD -speed 4000 -autoconnect 1 -JLinkScriptFile {script_path}\KM4_SEL.JLinkScript

Then:

"{Jlink_path}\JLink.exe" -device RV32 -if cjtag -speed 4000 -JTAGConf -1,-1 -autoconnect 1

KR4 -> KM4:

First:

"{Jlink_path}\JLink.exe" -device RV32 -if cjtag -speed 4000 -JTAGConf -1,-1 -JLinkScriptFile {script_path}\KR4_DMI.JLinkScript

Then:

"{Jlink_path}\JLink.exe" -device Cortex-M33 -if SWD -speed 4000 -autoconnect 1

KM4:

"{Jlink_path}\JLink.exe" -device Cortex-M33 -if SWD -speed 4000 -autoconnect 1 -JLinkScriptFile {script_path}\AP1_KM4.JLinkScript

KM0:

"{Jlink_path}\JLink.exe" -device Cortex-M23 -if SWD -speed 4000 -autoconnect 1 -JLinkScriptFile {script_path}\AP0_KM0.JLinkScript

CA32 core0:

"{Jlink_path}\JLink.exe" -device Cortex-A32 -if SWD -speed 4000 -autoconnect 1 -JLinkScriptFile {script_path}\AP3_CA32_Core0.JLinkScript

CA32 core1:

"{Jlink_path}\JLink.exe" -device Cortex-A32 -if SWD -speed 4000 -autoconnect 1 -JLinkScriptFile {script_path}\AP3_CA32_Core1.JlinkScript

Note

{Jlink_path}: J-Link installation path (Default is C:\Program Files (x86)\SEGGER\JLink)
{script_path}: {SDK}\amebaxxx_gcc_project\utils\jlink_script

GDB Core Command Set

Command quick reference
Command (Full)	Shortcut	Syntax	Description
Halt	H		Suspend CPU execution
Go	G		Resume CPU execution
Mem	/	Mem <Address> <ByteCount>	Read memory (ASCII format)
SaveBin	/	SaveBin <File> <Address> <ByteCount>	Dump memory to binary file
Exit	/		Disconnect J-Link

Official documentation: https://wiki.segger.com/J-Link_Commander

Note

Track PC values via multiple H/G executions
Use mem <sp_address> to inspect call stack

GDB Debugger Guide

GNU Debugger enables runtime state inspection and error tracing (Reference: Debug Mode Entry Process)

Complete documentation: GDB User Manual

Functional command reference
Function Module	Command	Operation Guide
Breakpoint Management	break (b)	Set execution pause points
Data Watchpoints	watch	Monitor variable changes (watch/rwatch/awatch) Note Recommended watch scope <20 bytes.
Breakpoint List	info	Display active breakpoints/watchpoints
Breakpoint Removal	delete (d)	Remove specified breakpoint
Execution Resume	continue (c)	Continue program execution
Step Into	step (s)	Enter function execution
Step Over	next (n)	Execute current line and jump to next
Debug Session Exit	quit (q)	Terminate debugging session
Call Trace	backtrace (bt)	Display function call stack
Source Code View	list (l)	Display contextual code
Data Inspection	print (p)	Output variable/expression values
